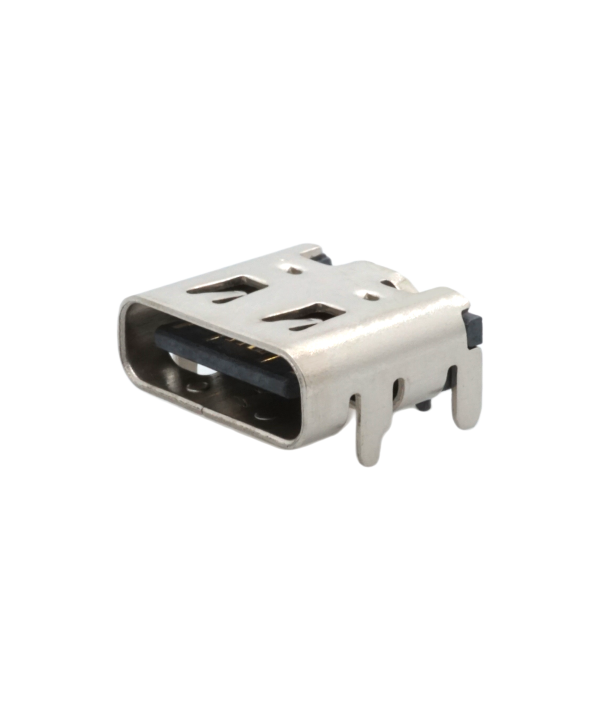

LUB-C117D
INFO
- - Product Code: LUB-C117D
- - Availability: Pre-Order
| Model Name: | LUB-C117D |
| Product Description: | USB 2.0 TYPE-C (16 PIN) |
| Orientation: | Right Angle Type |
| Mounting Type: | Surface Mount |
| Insertion Depth: | 4.80mm |
| Distance Between Bottom to Center: | 1.68mm |
| Electrical Rating: | 5A,1.25A,0.25A |
| Product Life Cycle: | 10000 |
| Product Length: | 7.35mm |
| Product Width: | 8.94mm |
| Product Height: | 3.26mm |
| 2D Drawing: | Datasheet |
$0.00
