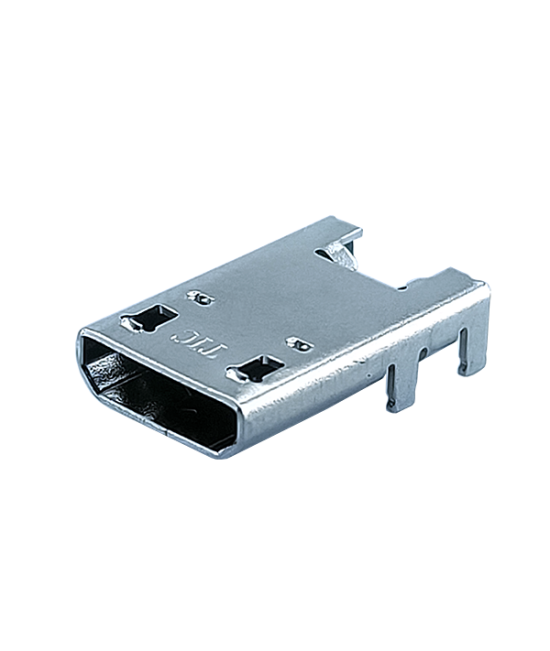

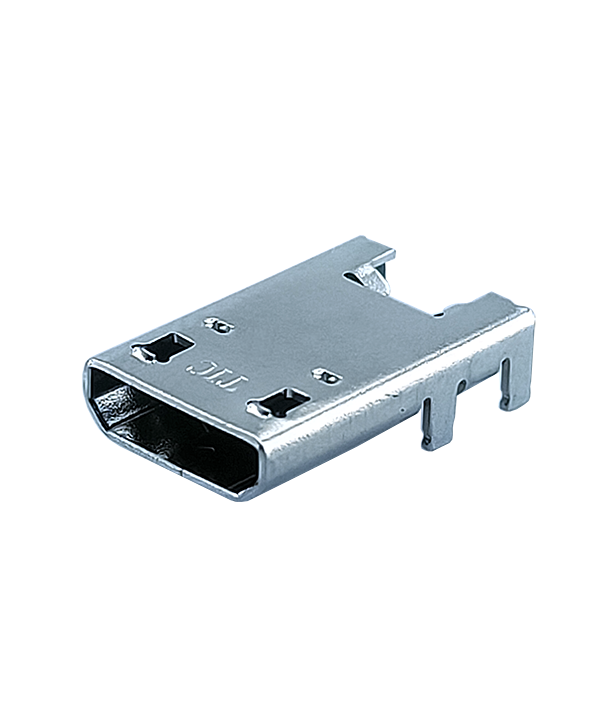

LUB-003D
INFO
- - Product Code: LUB-C001D
- - Availability: Pre-Order
| Model Name: | LUB-003D |
| Product Description: | USB MICRO B |
| Orientation: | Horizontal |
| Mounting Type: | SMD |
| Insertion Depth: | 3.9mm |
| Distance Between Bottom to Center: |
1.225mm |
| Electrical Rating: | PIN 1,5:1.8A/30V AC Max.; PIN 2,3,4:0.5A/30V AC Max. |
| Product Life Cycle: | 10000 |
| Product Length: | 11.8mm |
| Product Width: | 7.5mm |
| Product Height: | 2.45mm |
| 2D Drawing: | Datasheet |
$0.00
