LUB-3005-1
INFO
- - Product Code: LUB-3005-1
- - Availability: Pre-Order
| Model Name: | LUB-3005-1 |

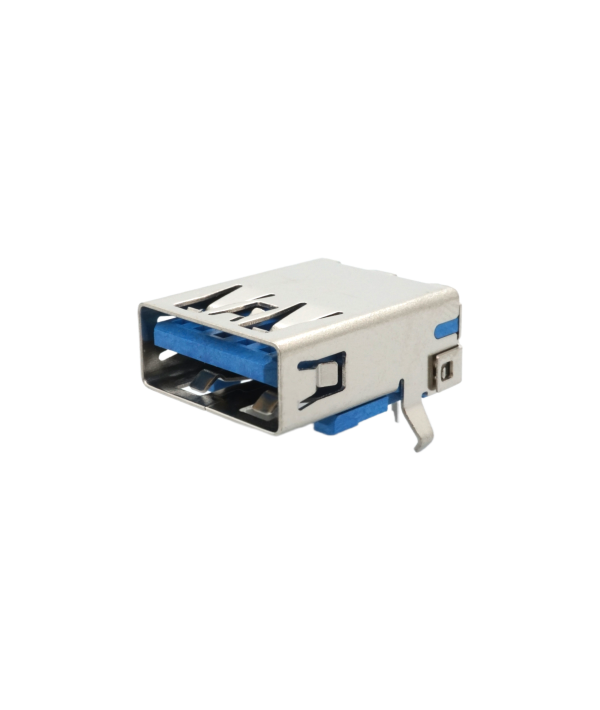

| Product Description: | USB 3.2 Gen1 A Type Connector |
| Orientation: | Right Angle Type |
| Mounting Type: | Through Hole |
| Insertion Depth: | 10.25mm |
| Distance Between Bottom to Center: | 4.10mm |
| Electrical Rating: | 1)PIN 1,4: 1.8A maximum. 2)0.25A for all other contacts. |
| Product Life Cycle: | 5000 |
| Product Length: | 16.70mm |
| Product Width: | 13.80mm |
| Product Height: | 6.96mm |
| 2D Drawing: | Datasheet |
$0.00
